Basic flush post and below flush water resistant crowns are made to keep moisture out of your watch. These crowns are made to fit over a case tube on the side of the watch case. The flush post crowns are the most common type of crown used on watches. Available in 7 different taps, many different diameter and tube combinations and 4 color options. Generally used on water resistant or waterproof watches. These crowns cannot guarantee water resistance unless the watch is water proof tested. Styles and sizes may vary. Limited sizes and stock in the below flush crowns.
-
Sold individually
-
Available in silver, gold, black and rose gold
-
Available tap sizes: 6, 8, 9, 10, 11, 12 and 13
-
Available outside crown diameters: 2.5mm, 2.8mm, 3.0mm, 3.5mm, 3.8mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 5.6mm and 6.0mm
-
Available tube diameters: 1.5mm, 1.6mm, 1.8mm, 2.0mm and 2.5mm
-
Available in the standard edge knurl or a wide edge knurl
-
Styles and sizes may vary
-
Limited sizes and stock in the below flush crowns
Click Here for Our Guide to Watch Crowns
*Sizes are approximate as measurements may vary slightly by gauge.

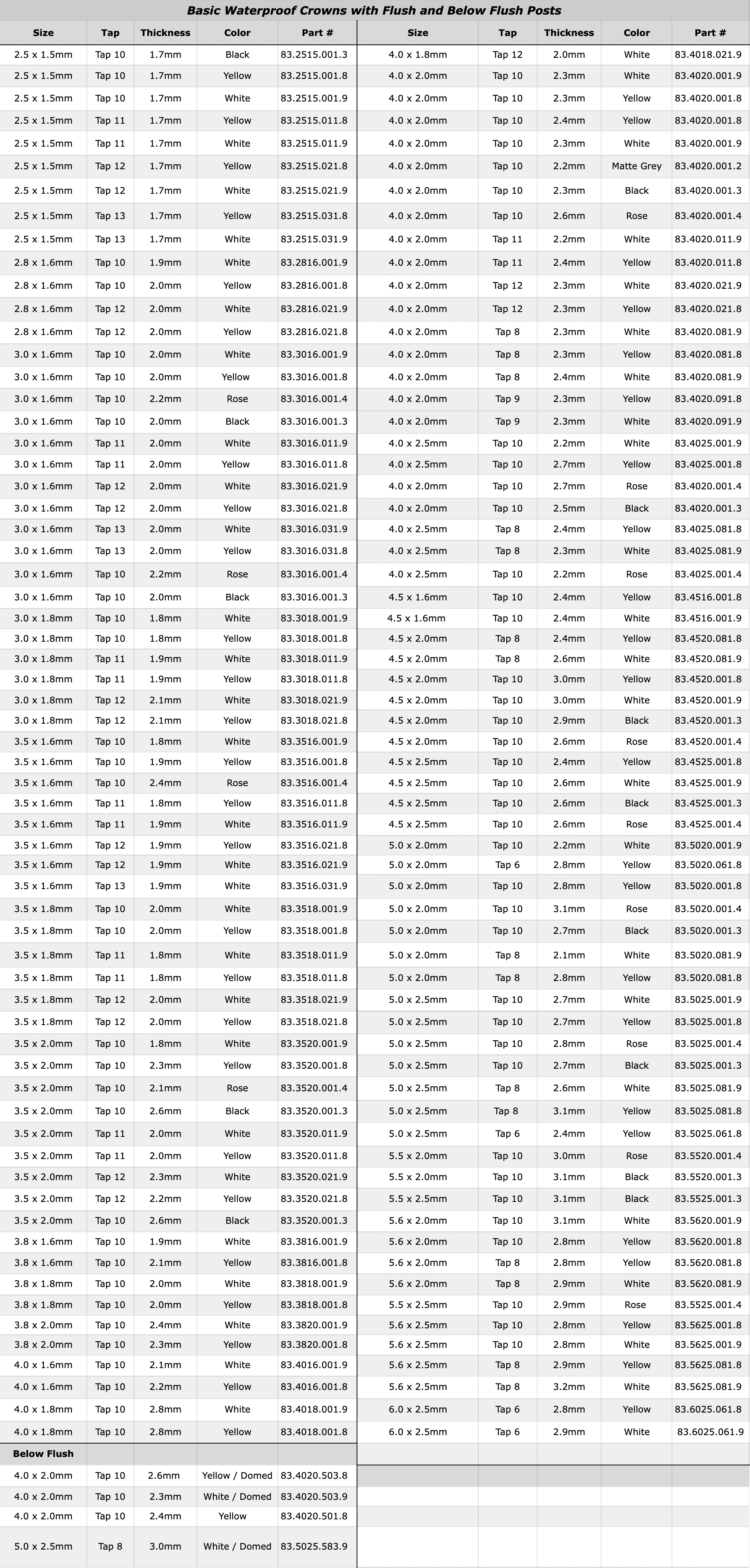

Basic Waterproof Crowns with Flush and Below Flush Posts |
Size |
Tap |
Thickness |
Color |
Part # |
Size |
Tap |
Thickness |
Color |
Part # |
2.5 x 1.5mm |
Tap 10 |
1.7mm |
Black |
83.2515.001.3 |
4.0 x 1.8mm |
Tap 12 |
2.0mm |
White |
83.4018.021.9 |
2.5 x 1.5mm |
Tap 10 |
1.7mm |
Yellow |
83.2515.001.8 |
4.0 x 2.0mm |
Tap 10 |
2.3mm |
White |
83.4020.001.9 |
2.5 x 1.5mm |
Tap 10 |
1.7mm |
White |
83.2515.001.9 |
4.0 x 2.0mm |
Tap 10 |
2.3mm |
Yellow |
83.4020.001.8 |
2.5 x 1.5mm |
Tap 11 |
1.7mm |
Yellow |
83.2515.011.8 |
4.0 x 2.0mm |
Tap 10 |
2.4mm |
Yellow |
83.4020.001.8 |
2.5 x 1.5mm |
Tap 11 |
1.7mm |
White |
83.2515.011.9 |
4.0 x 2.0mm |
Tap 10 |
2.3mm |
White |
83.4020.001.9 |
2.5 x 1.5mm |
Tap 12 |
1.7mm |
Yellow |
83.2515.021.8 |
4.0 x 2.0mm |
Tap 10 |
2.2mm |
Matte Grey |
83.4020.001.2 |
2.5 x 1.5mm |
Tap 12 |
1.7mm |
White |
83.2515.021.9 |
4.0 x 2.0mm |
Tap 10 |
2.3mm |
Black |
83.4020.001.3 |
2.5 x 1.5mm |
Tap 13 |
1.7mm |
Yellow |
83.2515.031.8 |
4.0 x 2.0mm |
Tap 10 |
2.6mm |
Rose |
83.4020.001.4 |
2.5 x 1.5mm |
Tap 13 |
1.7mm |
White |
83.2515.031.9 |
4.0 x 2.0mm |
Tap 11 |
2.2mm |
White |
83.4020.011.9 |
2.8 x 1.6mm |
Tap 10 |
1.9mm |
White |
83.2816.001.9 |
4.0 x 2.0mm |
Tap 11 |
2.4mm |
Yellow |
83.4020.011.8 |
2.8 x 1.6mm |
Tap 10 |
2.0mm |
Yellow |
83.2816.001.8 |
4.0 x 2.0mm |
Tap 12 |
2.3mm |
White |
83.4020.021.9 |
2.8 x 1.6mm |
Tap 12 |
2.0mm |
White |
83.2816.021.9 |
4.0 x 2.0mm |
Tap 12 |
2.3mm |
Yellow |
83.4020.021.8 |
2.8 x 1.6mm |
Tap 12 |
2.0mm |
Yellow |
83.2816.021.8 |
4.0 x 2.0mm |
Tap 8 |
2.3mm |
White |
83.4020.081.9 |
3.0 x 1.6mm |
Tap 10 |
2.0mm |
White |
83.3016.001.9 |
4.0 x 2.0mm |
Tap 8 |
2.3mm |
Yellow |
83.4020.081.8 |
3.0 x 1.6mm |
Tap 10 |
2.0mm |
Yellow |
83.3016.001.8 |
4.0 x 2.0mm |
Tap 8 |
2.4mm |
White |
83.4020.081.9 |
3.0 x 1.6mm |
Tap 10 |
2.2mm |
Rose |
83.3016.001.4 |
4.0 x 2.0mm |
Tap 9 |
2.3mm |
White |
83.4020.091.9 |
3.0 x 1.6mm |
Tap 10 |
2.0mm |
Black |
83.3016.001.3 |
4.0 x 2.5mm |
Tap 10 |
2.2mm |
White |
83.4025.001.9 |
3.0 x 1.6mm |
Tap 11 |
2.0mm |
White |
83.3016.011.9 |
4.0 x 2.5mm |
Tap 10 |
2.7mm |
Yellow |
83.4025.001.8 |
3.0 x 1.6mm |
Tap 11 |
2.0mm |
Yellow |
83.3016.011.8 |
4.0 x 2.0mm |
Tap 10 |
2.7mm |
Rose |
83.4020.001.4 |
3.0 x 1.6mm |
Tap 12 |
2.0mm |
White |
83.3016.021.9 |
4.0 x 2.0mm |
Tap 10 |
2.5mm |
Black |
83.4020.001.3 |
3.0 x 1.6mm |
Tap 12 |
2.0mm |
Yellow |
83.3016.021.8 |
4.0 x 2.5mm |
Tap 8 |
2.4mm |
Yellow |
83.4025.081.8 |
3.0 x 1.6mm |
Tap 13 |
2.0mm |
White |
83.3016.031.9 |
4.0 x 2.5mm |
Tap 8 |
2.3mm |
White |
83.4025.081.9 |
3.0 x 1.6mm |
Tap 13 |
2.0mm |
Yellow |
83.3016.031.8 |
4.0 x 2.5mm |
Tap 10 |
2.2mm |
Rose |
83.4025.001.4 |
3.0 x 1.6mm |
Tap 10 |
2.2mm |
Rose |
83.3016.001.4 |
4.5 x 1.6mm |
Tap 10 |
2.4mm |
Yellow |
83.4516.001.8 |
3.0 x 1.6mm |
Tap 10 |
2.0mm |
Black |
83.3016.001.3 |
4.5 x 1.6mm |
Tap 10 |
2.4mm |
White |
83.4516.001.9 |
3.0 x 1.8mm |
Tap 10 |
1.8mm |
White |
83.3018.001.9 |
4.5 x 2.0mm |
Tap 8 |
2.4mm |
Yellow |
83.4520.081.8 |
3.0 x 1.8mm |
Tap 10 |
1.8mm |
Yellow |
83.3018.001.8 |
4.5 x 2.0mm |
Tap 8 |
2.6mm |
White |
83.4520.081.9 |
3.0 x 1.8mm |
Tap 11 |
1.9mm |
White |
83.3018.011.9 |
4.5 x 2.0mm |
Tap 10 |
3.0mm |
Yellow |
83.4520.001.8 |
3.0 x 1.8mm |
Tap 11 |
1.9mm |
Yellow |
83.3018.011.8 |
4.5 x 2.0mm |
Tap 10 |
3.0mm |
White |
83.4520.001.9 |
3.0 x 1.8mm |
Tap 12 |
2.1mm |
White |
83.3018.021.9 |
4.5 x 2.0mm |
Tap 10 |
2.9mm |
Black |
83.4520.001.3 |
3.0 x 1.8mm |
Tap 12 |
2.1mm |
Yellow |
83.3018.021.8 |
4.5 x 2.0mm |
Tap 10 |
2.6mm |
Rose |
83.4520.001.4 |
3.5 x 1.6mm |
Tap 10 |
1.8mm |
White |
83.3516.001.9 |
4.5 x 2.5mm |
Tap 10 |
2.4mm |
Yellow |
83.4525.001.8 |
3.5 x 1.6mm |
Tap 10 |
1.9mm |
Yellow |
83.3516.001.8 |
4.5 x 2.5mm |
Tap 10 |
2.6mm |
White |
83.4525.001.9 |
3.5 x 1.6mm |
Tap 10 |
2.4mm |
Rose |
83.3516.001.4 |
4.5 x 2.5mm |
Tap 10 |
2.6mm |
Black |
83.4525.001.3 |
3.5 x 1.6mm |
Tap 11 |
1.8mm |
Yellow |
83.3516.011.8 |
4.5 x 2.5mm |
Tap 10 |
2.6mm |
Rose |
83.4525.001.4 |
3.5 x 1.6mm |
Tap 12 |
1.9mm |
Yellow |
83.3516.021.8 |
5.0 x 2.0mm |
Tap 10 |
2.2mm |
White |
83.5020.001.9 |
3.5 x 1.6mm |
Tap 12 |
1.9mm |
White |
83.3516.021.9 |
5.0 x 2.0mm |
Tap 6 |
2.8mm |
Yellow |
83.5020.061.8 |
3.5 x 1.6mm |
Tap 13 |
1.9mm |
White |
83.3516.031.9 |
5.0 x 2.0mm |
Tap 10 |
2.8mm |
Yellow |
83.5020.001.8 |
3.5 x 1.8mm |
Tap 10 |
2.0mm |
White |
83.3518.001.9 |
5.0 x 2.0mm |
Tap 10 |
3.1mm |
Rose |
83.5020.001.4 |
3.5 x 1.8mm |
Tap 10 |
2.0mm |
Yellow |
83.3518.001.8 |
5.0 x 2.0mm |
Tap 10 |
2.7mm |
Black |
83.5020.001.3 |
3.5 x 1.8mm |
Tap 11 |
1.8mm |
White |
83.3518.011.9 |
5.0 x 2.0mm |
Tap 8 |
2.1mm |
White |
83.5020.081.9 |
3.5 x 1.8mm |
Tap 11 |
1.8mm |
Yellow |
83.3518.011.8 |
5.0 x 2.0mm |
Tap 8 |
2.8mm |
Yellow |
83.5020.081.8 |
3.5 x 1.8mm |
Tap 12 |
2.0mm |
White |
83.3518.021.9 |
5.0 x 2.5mm |
Tap 10 |
2.7mm |
White |
83.5025.001.9 |
3.5 x 1.8mm |
Tap 12 |
2.0mm |
Yellow |
83.3518.021.8 |
5.0 x 2.5mm |
Tap 10 |
2.7mm |
Yellow |
83.5025.001.8 |
3.5 x 2.0mm |
Tap 10 |
1.8mm |
White |
83.3520.001.9 |
5.0 x 2.5mm |
Tap 10 |
2.8mm |
Rose |
83.5025.001.4 |
3.5 x 2.0mm |
Tap 10 |
2.3mm |
Yellow |
83.3520.001.8 |
5.0 x 2.5mm |
Tap 10 |
2.7mm |
Black |
83.5025.001.3 |
3.5 x 2.0mm |
Tap 10 |
2.1mm |
Rose |
83.3520.001.4 |
5.0 x 2.5mm |
Tap 8 |
2.6mm |
White |
83.5025.081.9 |
3.5 x 2.0mm |
Tap 10 |
2.6mm |
Black |
83.3520.001.3 |
5.0 x 2.5mm |
Tap 8 |
3.1mm |
Yellow |
83.5025.081.8 |
3.5 x 2.0mm |
Tap 11 |
2.0mm |
White |
83.3520.011.9 |
5.0 x 2.5mm |
Tap 6 |
2.4mm |
Yellow |
83.5025.061.8 |
3.5 x 2.0mm |
Tap 11 |
2.0mm |
Yellow |
83.3520.011.8 |
5.5 x 2.0mm |
Tap 10 |
3.0mm |
Rose |
83.5520.001.4 |
3.5 x 2.0mm |
Tap 12 |
2.3mm |
White |
83.3520.021.9 |
5.5 x 2.0mm |
Tap 10 |
3.1mm |
Black |
83.5520.001.3 |
3.5 x 2.0mm |
Tap 12 |
2.2mm |
Yellow |
83.3520.021.8 |
5.5 x 2.5mm |
Tap 10 |
3.1mm |
Black |
83.5525.001.3 |
3.5 x 2.0mm |
Tap 10 |
2.6mm |
Black |
83.3520.001.3 |
5.6 x 2.0mm |
Tap 10 |
3.1mm |
White |
83.5620.001.9 |
3.8 x 1.6mm |
Tap 10 |
1.9mm |
White |
83.3816.001.9 |
5.6 x 2.0mm |
Tap 10 |
2.8mm |
Yellow |
83.5620.001.8 |
3.8 x 1.6mm |
Tap 10 |
2.1mm |
Yellow |
83.3816.001.8 |
5.6 x 2.0mm |
Tap 8 |
2.8mm |
Yellow |
83.5620.081.8 |
3.8 x 1.8mm |
Tap 10 |
2.0mm |
White |
83.3818.001.9 |
5.6 x 2.0mm |
Tap 8 |
2.9mm |
White |
83.5620.081.9 |
3.8 x 1.8mm |
Tap 10 |
2.0mm |
Yellow |
83.3818.001.8 |
5.5 x 2.5mm |
Tap 10 |
2.9mm |
Rose |
83.5525.001.4 |
3.8 x 2.0mm |
Tap 10 |
2.4mm |
White |
83.3820.001.9 |
5.6 x 2.5mm |
Tap 10 |
2.8mm |
Yellow |
83.5625.001.8 |
3.8 x 2.0mm |
Tap 10 |
2.3mm |
Yellow |
83.3820.001.8 |
5.6 x 2.5mm |
Tap 10 |
2.8mm |
White |
83.5625.001.9 |
4.0 x 1.6mm |
Tap 10 |
2.1mm |
White |
83.4016.001.9 |
5.6 x 2.5mm |
Tap 8 |
2.9mm |
Yellow |
83.5625.081.8 |
4.0 x 1.6mm |
Tap 10 |
2.2mm |
Yellow |
83.4016.001.8 |
5.6 x 2.5mm |
Tap 8 |
3.2mm |
White |
83.5625.081.9 |
4.0 x 1.8mm |
Tap 10 |
2.8mm |
White |
83.4018.001.9 |
6.0 x 2.5mm |
Tap 6 |
2.8mm |
Yellow |
83.6025.061.8 |
4.0 x 1.8mm |
Tap 10 |
2.8mm |
Yellow |
83.4018.001.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Below Flush |
|
|
|
|
|
|
|
|
|
4.0 x 2.0mm |
Tap 10 |
2.6mm |
Yellow / Domed |
83.4020.503.8 |
|
|
|
|
|
4.0 x 2.0mm |
Tap 10 |
2.3mm |
White / domed |
83.4020.503.9 |
|
|
|
|
|
4.0 x 2.0mm |
Tap 10 |
2.4mm |
Yellow |
83.4020.501.8 |
|
|
|
|
|
5.0 x 2.5mm |
Tap 8 |
3.0mm |
White / domed |
83.5025.583.9 |
|
|
|
|
|
