Long post water resistant crowns are made to keep moisture out of your watch. These crowns are made to fit over a case tube on the side of the case. These long post crowns are perfect if you have cut your stem to short, the stem has broken off or if a new stem is no longer available and you only have a few threads left. The extra length on the post will make up the missing length for the shortened or broken off stem saving you time and money. No need to purchase a new stem with this style of crown. Available in 3 different taps, 10 different sizes and 4 color options. Generally used on water resistant or waterproof watches. These crowns cannot guarantee water resistance unless the watch is water proof tested. Styles and sizes may vary.
-
Sold individually
-
Available in silver, gold, titanium, rose gold or black color
-
Available tap sizes: 10, 11 and 12
-
Available outside crown diameters: 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.5mm, 6.5mm, 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm, 9.5mm and 10.0mm
-
Available tube diameters: 1.6mm, 1.8mm, 2.0mm and 2.5mm
-
Available in the standard edge knurl or a wide edge knurl
-
Styles and sizes may vary
*Sizes are approximate as measurements may vary slightly by gauge.

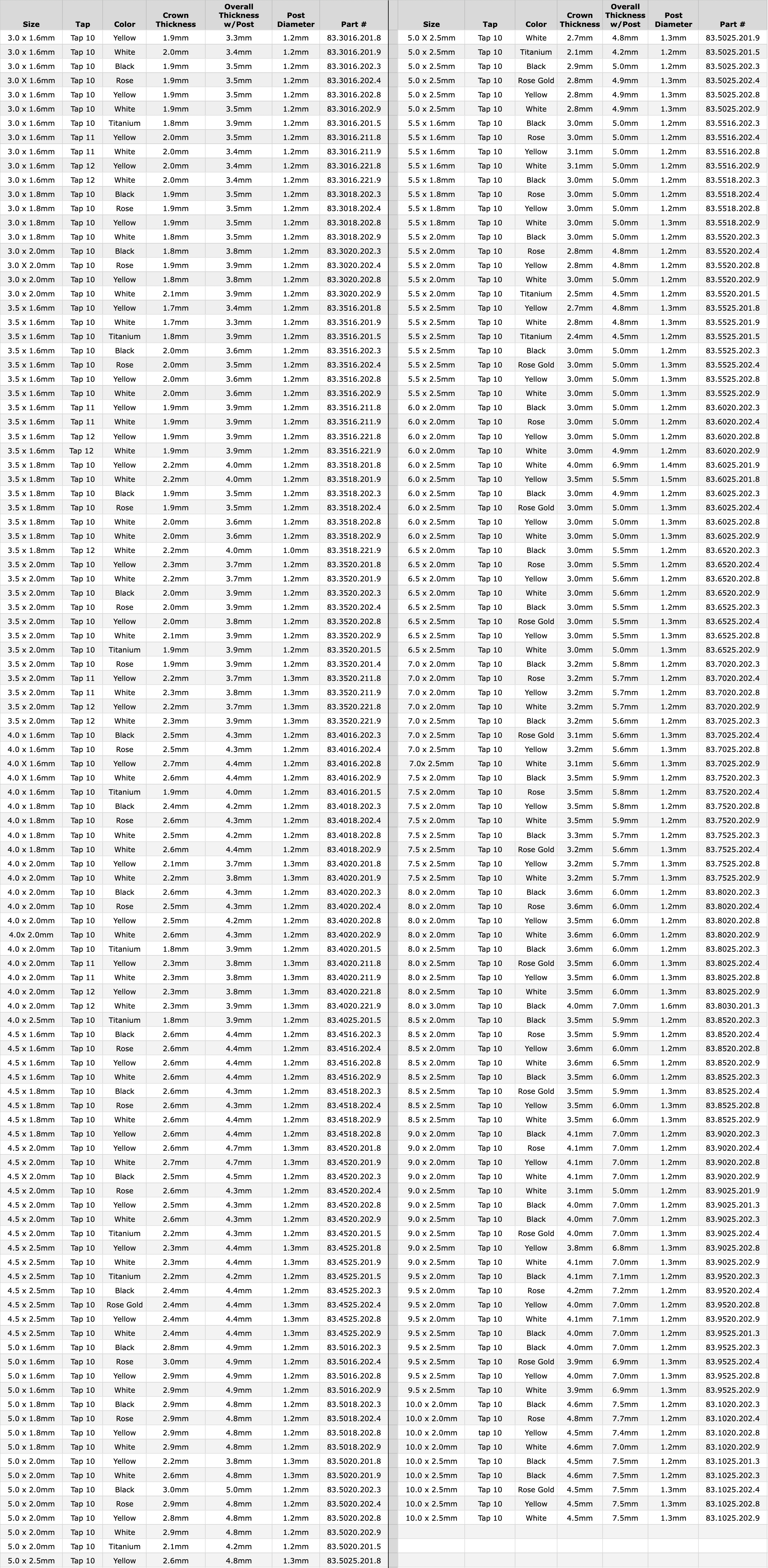

| Size |
Tap |
Color |
Crown Thickness |
Overall Thickness w/Post |
Post Diameter |
Part # |
|
Size |
Tap |
Color |
Crown Thickness |
Overall Thickness w/Post |
Post Diameter |
Part # |
| 3.0 x 1.6mm |
Tap 10 |
Yellow |
1.9mm |
3.3mm |
1.2mm |
83.3016.201.8 |
|
5.0 X 2.5mm |
Tap 10 |
White |
2.7mm |
4.8mm |
1.3mm |
83.5025.201.9 |
| 3.0 x 1.6mm |
Tap 10 |
White |
2.0mm |
3.4mm |
1.2mm |
83.3016.201.9 |
|
5.0 x 2.5mm |
Tap 10 |
Titanium |
2.1mm |
4.2mm |
1.2mm |
83.5025.201.5 |
| 3.0 x 1.6mm |
Tap 10 |
Black |
1.9mm |
3.5mm |
1.2mm |
83.3016.202.3 |
|
5.0 x 2.5mm |
Tap 10 |
Black |
2.9mm |
5.0mm |
1.2mm |
83.5025.202.3 |
| 3.0 X 1.6mm |
Tap 10 |
Rose |
1.9mm |
3.5mm |
1.2mm |
83.3016.202.4 |
|
5.0 x 2.5mm |
Tap 10 |
Rose Gold |
2.8mm |
4.9mm |
1.3mm |
83.5025.202.4 |
| 3.0 x 1.6mm |
Tap 10 |
Yellow |
1.9mm |
3.5mm |
1.2mm |
83.3016.202.8 |
|
5.0 x 2.5mm |
Tap 10 |
Yellow |
2.8mm |
4.9mm |
1.3mm |
83.5025.202.8 |
| 3.0 x 1.6mm |
Tap 10 |
White |
1.9mm |
3.5mm |
1.2mm |
83.3016.202.9 |
|
5.0 x 2.5mm |
Tap 10 |
White |
2.8mm |
4.9mm |
1.3mm |
83.5025.202.9 |
| 3.0 x 1.6mm |
Tap 10 |
Titanium |
1.8mm |
3.9mm |
1.2mm |
83.3016.201.5 |
|
5.5 x 1.6mm |
Tap 10 |
Black |
3.0mm |
5.0mm |
1.2mm |
83.5516.202.3 |
| 3.0 x 1.6mm |
Tap 11 |
Yellow |
2.0mm |
3.5mm |
1.2mm |
83.3016.211.8 |
|
5.5 x 1.6mm |
Tap 10 |
Rose |
3.0mm |
5.0mm |
1.2mm |
83.5516.202.4 |
| 3.0 x 1.6mm |
Tap 11 |
White |
2.0mm |
3.4mm |
1.2mm |
83.3016.211.9 |
|
5.5 x 1.6mm |
Tap 10 |
Yellow |
3.1mm |
5.0mm |
1.2mm |
83.5516.202.8 |
| 3.0 x 1.6mm |
Tap 12 |
Yellow |
2.0mm |
3.4mm |
1.2mm |
83.3016.221.8 |
|
5.5 x 1.6mm |
Tap 10 |
White |
3.1mm |
5.0mm |
1.2mm |
83.5516.202.9 |
| 3.0 x 1.6mm |
Tap 12 |
White |
2.0mm |
3.4mm |
1.2mm |
83.3016.221.9 |
|
5.5 x 1.8mm |
Tap 10 |
Black |
3.0mm |
5.0mm |
1.2mm |
83.5518.202.3 |
| 3.0 x 1.8mm |
Tap 10 |
Black |
1.9mm |
3.5mm |
1.2mm |
83.3018.202.3 |
|
5.5 x 1.8mm |
Tap 10 |
Rose |
3.0mm |
5.0mm |
1.2mm |
83.5518.202.4 |
| 3.0 x 1.8mm |
Tap 10 |
Rose |
1.9mm |
3.5mm |
1.2mm |
83.3018.202.4 |
|
5.5 x 1.8mm |
Tap 10 |
Yellow |
3.0mm |
5.0mm |
1.2mm |
83.5518.202.8 |
| 3.0 x 1.8mm |
Tap 10 |
Yellow |
1.9mm |
3.5mm |
1.2mm |
83.3018.202.8 |
|
5.5 x 1.8mm |
Tap 10 |
White |
3.0mm |
5.0mm |
1.3mm |
83.5518.202.9 |
| 3.0 x 1.8mm |
Tap 10 |
White |
1.8mm |
3.5mm |
1.2mm |
83.3018.202.9 |
|
5.5 x 2.0mm |
Tap 10 |
Black |
3.0mm |
5.0mm |
1.2mm |
83.5520.202.3 |
| 3.0 x 2.0mm |
Tap 10 |
Black |
1.8mm |
3.8mm |
1.2mm |
83.3020.202.3 |
|
5.5 x 2.0mm |
Tap 10 |
Rose |
2.8mm |
4.8mm |
1.2mm |
83.5520.202.4 |
| 3.0 X 2.0mm |
Tap 10 |
Rose |
1.9mm |
3.9mm |
1.2mm |
83.3020.202.4 |
|
5.5 x 2.0mm |
Tap 10 |
Yellow |
2.8mm |
4.8mm |
1.2mm |
83.5520.202.8 |
| 3.0 x 2.0mm |
Tap 10 |
Yellow |
1.8mm |
3.8mm |
1.2mm |
83.3020.202.8 |
|
5.5 x 2.0mm |
Tap 10 |
White |
3.0mm |
5.0mm |
1.2mm |
83.5520.202.9 |
| 3.0 x 2.0mm |
Tap 10 |
White |
2.1mm |
3.9mm |
1.2mm |
83.3020.202.9 |
|
5.5 x 2.0mm |
Tap 10 |
Titanium |
2.5mm |
4.5mm |
1.2mm |
83.5520.201.5 |
| 3.5 x 1.6mm |
Tap 10 |
Yellow |
1.7mm |
3.4mm |
1.2mm |
83.3516.201.8 |
|
5.5 x 2.5mm |
Tap 10 |
Yellow |
2.7mm |
4.8mm |
1.3mm |
83.5525.201.8 |
| 3.5 x 1.6mm |
Tap 10 |
White |
1.7mm |
3.3mm |
1.2mm |
83.3516.201.9 |
|
5.5 x 2.5mm |
Tap 10 |
White |
2.8mm |
4.8mm |
1.3mm |
83.5525.201.9 |
| 3.5 x 1.6mm |
Tap 10 |
Titanium |
1.8mm |
3.9mm |
1.2mm |
83.3516.201.5 |
|
5.5 x 2.5mm |
Tap 10 |
Titanium |
2.4mm |
4.5mm |
1.2mm |
83.5525.201.5 |
| 3.5 x 1.6mm |
Tap 10 |
Black |
2.0mm |
3.6mm |
1.2mm |
83.3516.202.3 |
|
5.5 x 2.5mm |
Tap 10 |
Black |
3.0mm |
5.0mm |
1.2mm |
83.5525.202.3 |
| 3.5 x 1.6mm |
Tap 10 |
Rose |
2.0mm |
3.5mm |
1.2mm |
83.3516.202.4 |
|
5.5 x 2.5mm |
Tap 10 |
Rose Gold |
3.0mm |
5.0mm |
1.3mm |
83.5525.202.4 |
| 3.5 x 1.6mm |
Tap 10 |
Yellow |
2.0mm |
3.6mm |
1.2mm |
83.3516.202.8 |
|
5.5 x 2.5mm |
Tap 10 |
Yellow |
3.0mm |
5.0mm |
1.3mm |
83.5525.202.8 |
| 3.5 x 1.6mm |
Tap 10 |
White |
2.0mm |
3.6mm |
1.2mm |
83.3516.202.9 |
|
5.5 x 2.5mm |
Tap 10 |
White |
3.0mm |
5.0mm |
1.3mm |
83.5525.202.9 |
| 3.5 x 1.8mm |
Tap 10 |
Yellow |
2.2mm |
4.0mm |
1.2mm |
83.3518.201.8 |
|
6.0 x 2.0mm |
Tap 10 |
Black |
3.0mm |
5.0mm |
1.2mm |
83.6020.202.3 |
| 3.5 x 1.8mm |
Tap 10 |
White |
2.2mm |
4.0mm |
1.2mm |
83.3518.201.9 |
|
6.0 x 2.0mm |
Tap 10 |
Rose |
3.0mm |
5.0mm |
1.2mm |
83.6020.202.4 |
| 3.5 x 1.8mm |
Tap 10 |
Black |
1.9mm |
3.5mm |
1.2mm |
83.3518.202.3 |
|
6.0 x 2.0mm |
Tap 10 |
Yellow |
3.0mm |
5.0mm |
1.2mm |
83.6020.202.8 |
| 3.5 x 1.8mm |
Tap 10 |
Rose |
1.9mm |
3.5mm |
1.2mm |
83.3518.202.4 |
|
6.0 x 2.0mm |
Tap 10 |
White |
3.0mm |
4.9mm |
1.2mm |
83.6020.202.9 |
| 3.5 x 1.8mm |
Tap 10 |
White |
2.0mm |
3.6mm |
1.2mm |
83.3518.202.8 |
|
6.0 x 2.5mm |
Tap 10 |
White |
4.0mm |
6.9mm |
1.4mm |
83.6025.201.9 |
| 3.5 x 1.8mm |
Tap 10 |
White |
2.0mm |
3.6mm |
1.2mm |
83.3518.202.9 |
|
6.0 x 2.5mm |
Tap 10 |
Yellow |
3.5mm |
5.5mm |
1.5mm |
83.6025.201.8 |
| 3.5 x 1.8mm |
Tap 12 |
White |
2.2mm |
4.0mm |
1.0mm |
83.3518.221.9 |
|
6.0 x 2.5mm |
Tap 10 |
Black |
3.0mm |
4.9mm |
1.2mm |
83.6025.202.3 |
| 3.5 x 2.0mm |
Tap 10 |
Yellow |
2.3mm |
3.7mm |
1.2mm |
83.3520.201.8 |
|
6.0 x 2.5mm |
Tap 10 |
Rose Gold |
3.0mm |
5.0mm |
1.3mm |
83.6025.202.4 |
| 3.5 x 2.0mm |
Tap 10 |
White |
2.2mm |
3.7mm |
1.2mm |
83.3520.201.9 |
|
6.0 x 2.5mm |
Tap 10 |
Yellow |
3.0mm |
5.0mm |
1.3mm |
83.6025.202.8 |
| 3.5 x 2.0mm |
Tap 10 |
Black |
2.0mm |
3.9mm |
1.2mm |
83.3520.202.3 |
|
6.0 x 2.5mm |
Tap 10 |
White |
3.0mm |
5.0mm |
1.3mm |
83.6025.202.9 |
| 3.5 x 2.0mm |
Tap 10 |
Rose |
2.0mm |
3.9mm |
1.2mm |
83.3520.202.4 |
|
6.5 x 2.0mm |
Tap 10 |
Black |
3.0mm |
5.5mm |
1.2mm |
83.6520.202.3 |
| 3.5 x 2.0mm |
Tap 10 |
Yellow |
2.0mm |
3.8mm |
1.2mm |
83.3520.202.8 |
|
6.5 x 2.0mm |
Tap 10 |
Rose |
3.0mm |
5.5mm |
1.2mm |
83.6520.202.4 |
| 3.5 x 2.0mm |
Tap 10 |
White |
2.1mm |
3.9mm |
1.2mm |
83.3520.202.9 |
|
6.5 x 2.0mm |
Tap 10 |
Yellow |
3.0mm |
5.6mm |
1.2mm |
83.6520.202.8 |
| 3.5 x 2.0mm |
Tap 10 |
Titanium |
1.9mm |
3.9mm |
1.2mm |
83.3520.201.5 |
|
6.5 x 2.0mm |
Tap 10 |
White |
3.0mm |
5.6mm |
1.2mm |
83.6520.202.9 |
| 3.5 x 2.0mm |
Tap 10 |
Rose |
1.9mm |
3.9mm |
1.2mm |
83.3520.201.4 |
|
6.5 x 2.5mm |
Tap 10 |
Black |
3.0mm |
5.5mm |
1.2mm |
83.6525.202.3 |
| 3.5 x 2.0mm |
Tap 11 |
Yellow |
2.2mm |
3.7mm |
1.3mm |
83.3520.211.8 |
|
6.5 x 2.5mm |
Tap 10 |
Rose Gold |
3.0mm |
5.5mm |
1.3mm |
83.6525.202.4 |
| 3.5 x 2.0mm |
Tap 11 |
White |
2.3mm |
3.8mm |
1.3mm |
83.3520.211.9 |
|
6.5 x 2.5mm |
Tap 10 |
Yellow |
3.0mm |
5.5mm |
1.3mm |
83.6525.202.8 |
| 3.5 x 2.0mm |
Tap 12 |
Yellow |
2.2mm |
3.7mm |
1.3mm |
83.3520.221.8 |
|
6.5 x 2.5mm |
Tap 10 |
White |
3.0mm |
5.0mm |
1.3mm |
83.6525.202.9 |
| 3.5 x 2.0mm |
Tap 12 |
White |
2.3mm |
3.9mm |
1.3mm |
83.3520.221.9 |
|
7.0 x 2.0mm |
Tap 10 |
Black |
3.2mm |
5.8mm |
1.2mm |
83.7020.202.3 |
| 4.0 x 1.6mm |
Tap 10 |
Black |
2.5mm |
4.3mm |
1.2mm |
83.4016.202.3 |
|
7.0 x 2.0mm |
Tap 10 |
Rose |
3.2mm |
5.7mm |
1.2mm |
83.7020.202.4 |
| 4.0 x 1.6mm |
Tap 10 |
Rose |
2.5mm |
4.3mm |
1.2mm |
83.4016.202.4 |
|
7.0 x 2.0mm |
Tap 10 |
Yellow |
3.2mm |
5.7mm |
1.2mm |
83.7020.202.8 |
| 4.0 X 1.6mm |
Tap 10 |
Yellow |
2.7mm |
4.4mm |
1.2mm |
83.4016.202.8 |
|
7.0 x 2.0mm |
Tap 10 |
White |
3.2mm |
5.7mm |
1.2mm |
83.7020.202.9 |
| 4.0 X 1.6mm |
Tap 10 |
White |
2.6mm |
4.4mm |
1.2mm |
83.4016.202.9 |
|
7.0 x 2.5mm |
Tap 10 |
Black |
3.2mm |
5.6mm |
1.2mm |
83.7025.202.3 |
| 4.0 x 1.6mm |
Tap 10 |
Titanium |
1.9mm |
4.0mm |
1.2mm |
83.4016.201.5 |
|
7.0 x 2.5mm |
Tap 10 |
Rose Gold |
3.1mm |
5.6mm |
1.3mm |
83.7025.202.4 |
| 4.0 x 1.8mm |
Tap 10 |
Black |
2.4mm |
4.2mm |
1.2mm |
83.4018.202.3 |
|
7.0 x 2.5mm |
Tap 10 |
Yellow |
3.2mm |
5.6mm |
1.3mm |
83.7025.202.8 |
| 4.0 x 1.8mm |
Tap 10 |
Rose |
2.6mm |
4.3mm |
1.2mm |
83.4018.202.4 |
|
7.0x 2.5mm |
Tap 10 |
White |
3.1mm |
5.6mm |
1.3mm |
83.7025.202.9 |
| 4.0 x 1.8mm |
Tap 10 |
White |
2.5mm |
4.2mm |
1.2mm |
83.4018.202.8 |
|
7.5 x 2.0mm |
Tap 10 |
Black |
3.5mm |
5.9mm |
1.2mm |
83.7520.202.3 |
| 4.0 x 1.8mm |
Tap 10 |
White |
2.6mm |
4.4mm |
1.2mm |
83.4018.202.9 |
|
7.5 x 2.0mm |
Tap 10 |
Rose |
3.5mm |
5.8mm |
1.2mm |
83.7520.202.4 |
| 4.0 x 2.0mm |
Tap 10 |
Yellow |
2.1mm |
3.7mm |
1.3mm |
83.4020.201.8 |
|
7.5 x 2.0mm |
Tap 10 |
Yellow |
3.5mm |
5.8mm |
1.2mm |
83.7520.202.8 |
| 4.0 x 2.0mm |
Tap 10 |
White |
2.2mm |
3.8mm |
1.3mm |
83.4020.201.9 |
|
7.5 x 2.0mm |
Tap 10 |
White |
3.5mm |
5.9mm |
1.2mm |
83.7520.202.9 |
| 4.0 x 2.0mm |
Tap 10 |
Black |
2.6mm |
4.3mm |
1.2mm |
83.4020.202.3 |
|
7.5 x 2.5mm |
Tap 10 |
Black |
3.3mm |
5.7mm |
1.2mm |
83.7525.202.3 |
| 4.0 x 2.0mm |
Tap 10 |
Rose |
2.5mm |
4.3mm |
1.2mm |
83.4020.202.4 |
|
7.5 x 2.5mm |
Tap 10 |
Rose Gold |
3.2mm |
5.6mm |
1.3mm |
83.7525.202.4 |
| 4.0 x 2.0mm |
Tap 10 |
Yellow |
2.5mm |
4.2mm |
1.2mm |
83.4020.202.8 |
|
7.5 x 2.5mm |
Tap 10 |
Yellow |
3.2mm |
5.7mm |
1.3mm |
83.7525.202.8 |
| 4.0x 2.0mm |
Tap 10 |
White |
2.6mm |
4.3mm |
1.2mm |
83.4020.202.9 |
|
7.5 x 2.5mm |
Tap 10 |
White |
3.2mm |
5.7mm |
1.3mm |
83.7525.202.9 |
| 4.0 x 2.0mm |
Tap 10 |
Titanium |
1.8mm |
3.9mm |
1.2mm |
83.4020.201.5 |
|
8.0 x 2.0mm |
Tap 10 |
Black |
3.6mm |
6.0mm |
1.2mm |
83.8020.202.3 |
| 4.0 x 2.0mm |
Tap 11 |
Yellow |
2.3mm |
3.8mm |
1.3mm |
83.4020.211.8 |
|
8.0 x 2.0mm |
Tap 10 |
Rose |
3.6mm |
6.0mm |
1.2mm |
83.8020.202.4 |
| 4.0 x 2.0mm |
Tap 11 |
White |
2.3mm |
3.8mm |
1.3mm |
83.4020.211.9 |
|
8.0 x 2.0mm |
Tap 10 |
Yellow |
3.5mm |
6.0mm |
1.2mm |
83.8020.202.8 |
| 4.0 x 2.0mm |
Tap 12 |
Yellow |
2.3mm |
3.8mm |
1.3mm |
83.4020.221.8 |
|
8.0 x 2.0mm |
Tap 10 |
White |
3.6mm |
6.0mm |
1.2mm |
83.8020.202.9 |
| 4.0 x 2.0mm |
Tap 12 |
White |
2.3mm |
3.9mm |
1.3mm |
83.4020.221.9 |
|
8.0 x 2.5mm |
Tap 10 |
Black |
3.6mm |
6.0mm |
1.2mm |
83.8025.202.3 |
| 4.0 x 2.5mm |
Tap 10 |
Titanium |
1.8mm |
3.9mm |
1.2mm |
83.4025.201.5 |
|
8.0 x 2.5mm |
Tap 10 |
Rose Gold |
3.5mm |
6.0mm |
1.3mm |
83.8025.202.4 |
| 4.5 x 1.6mm |
Tap 10 |
Black |
2.6mm |
4.4mm |
1.2mm |
83.4516.202.3 |
|
8.0 x 2.5mm |
Tap 10 |
Yellow |
3.5mm |
6.0mm |
1.3mm |
83.8025.202.8 |
| 4.5 x 1.6mm |
Tap 10 |
Rose |
2.6mm |
4.4mm |
1.2mm |
83.4516.202.4 |
|
8.0 x 2.5mm |
Tap 10 |
White |
3.5mm |
6.0mm |
1.3mm |
83.8025.202.9 |
| 4.5 x 1.6mm |
Tap 10 |
Yellow |
2.6mm |
4.4mm |
1.2mm |
83.4516.202.8 |
|
8.5 x 2.0mm |
Tap 10 |
Black |
3.5mm |
5.9mm |
1.2mm |
83.8520.202.3 |
| 4.5 x 1.6mm |
Tap 10 |
White |
2.6mm |
4.4mm |
1.2mm |
83.4516.202.9 |
|
8.5 x 2.0mm |
Tap 10 |
Rose |
3.5mm |
5.9mm |
1.2mm |
83.8520.202.4 |
| 4.5 x 1.8mm |
Tap 10 |
Black |
2.6mm |
4.3mm |
1.2mm |
83.4518.202.3 |
|
8.5 x 2.0mm |
Tap 10 |
Yellow |
3.6mm |
6.0mm |
1.2mm |
83.8520.202.8 |
| 4.5 x 1.8mm |
Tap 10 |
Rose |
2.6mm |
4.3mm |
1.2mm |
83.4518.202.4 |
|
8.5 x 2.0mm |
Tap 10 |
White |
3.6mm |
6.5mm |
1.2mm |
83.8520.202.9 |
| 4.5 x 1.8mm |
Tap 10 |
White |
2.6mm |
4.4mm |
1.2mm |
83.4518.202.9 |
|
8.5 x 2.5mm |
Tap 10 |
Black |
3.5mm |
6.0mm |
1.2mm |
83.8525.202.3 |
| 4.5 x 1.8mm |
Tap 10 |
Yellow |
2.6mm |
4.4mm |
1.2mm |
83.4518.202.8 |
|
8.5 x 2.5mm |
Tap 10 |
Rose Gold |
3.5mm |
5.9mm |
1.3mm |
83.8525.202.4 |
| 4.5 x 2.0mm |
Tap 10 |
Yellow |
2.6mm |
4.7mm |
1.3mm |
83.4520.201.8 |
|
8.5 x 2.5mm |
Tap 10 |
Yellow |
3.5mm |
6.0mm |
1.3mm |
83.8525.202.8 |
| 4.5 x 2.0mm |
Tap 10 |
White |
2.7mm |
4.7mm |
1.3mm |
83.4520.201.9 |
|
8.5 x 2.5mm |
Tap 10 |
White |
3.5mm |
6.0mm |
1.3mm |
83.8525.202.9 |
| 4.5 X 2.0mm |
Tap 10 |
Black |
2.5mm |
4.5mm |
1.2mm |
83.4520.202.3 |
|
9.0 x 2.0mm |
Tap 10 |
Black |
4.1mm |
7.0mm |
1.2mm |
83.9020.202.3 |
| 4.5 x 2.0mm |
Tap 10 |
Rose |
2.6mm |
4.3mm |
1.2mm |
83.4520.202.4 |
|
9.0 x 2.0mm |
Tap 10 |
Rose |
4.1mm |
7.0mm |
1.2mm |
83.9020.202.4 |
| 4.5 x 2.0mm |
Tap 10 |
Yellow |
2.5mm |
4.3mm |
1.2mm |
83.4520.202.8 |
|
9.0 x 2.0mm |
Tap 10 |
Yellow |
4.1mm |
7.0mm |
1.2mm |
83.9020.202.8 |
| 4.5 x 2.0mm |
Tap 10 |
White |
2.6mm |
4.3mm |
1.2mm |
83.4520.202.9 |
|
9.0 x 2.0mm |
Tap 10 |
White |
4.1mm |
7.0mm |
1.2mm |
83.9020.202.9 |
| 4.5 x 2.0mm |
Tap 10 |
Titanium |
2.2mm |
4.3mm |
1.2mm |
83.4520.201.5 |
|
9.0 x 2.5mm |
Tap 10 |
White |
3.1mm |
5.0mm |
1.2mm |
83.9025.201.9 |
| 4.5 x 2.5mm |
Tap 10 |
Yellow |
2.3mm |
4.4mm |
1.3mm |
83.4525.201.8 |
|
9.0 x 2.5mm |
Tap 10 |
Black |
4.0mm |
7.0mm |
1.2mm |
83.9025.201.3 |
| 4.5 x 2.5mm |
Tap 10 |
White |
2.3mm |
4.4mm |
1.3mm |
83.4525.201.9 |
|
9.0 x 2.5mm |
Tap 10 |
Black |
4.0mm |
7.0mm |
1.2mm |
83.9025.202.3 |
| 4.5 x 2.5mm |
Tap 10 |
Titanium |
2.2mm |
4.2mm |
1.2mm |
83.4525.201.5 |
|
9.0 x 2.5mm |
Tap 10 |
Rose Gold |
4.0mm |
7.0mm |
1.3mm |
83.9025.202.4 |
| 4.5 x 2.5mm |
Tap 10 |
Black |
2.4mm |
4.4mm |
1.2mm |
83.4525.202.3 |
|
9.0 x 2.5mm |
Tap 10 |
Yellow |
3.8mm |
6.8mm |
1.3mm |
83.9025.202.8 |
| 4.5 x 2.5mm |
Tap 10 |
Rose Gold |
2.4mm |
4.4mm |
1.3mm |
83.4525.202.4 |
|
9.0 x 2.5mm |
Tap 10 |
White |
4.1mm |
7.0mm |
1.3mm |
83.9025.202.9 |
| 4.5 x 2.5mm |
Tap 10 |
Yellow |
2.4mm |
4.4mm |
1.3mm |
83.4525.202.8 |
|
9.5 x 2.0mm |
Tap 10 |
Black |
4.1mm |
7.1mm |
1.2mm |
83.9520.202.3 |
| 4.5 x 2.5mm |
Tap 10 |
White |
2.4mm |
4.4mm |
1.3mm |
83.4525.202.9 |
|
9.5 x 2.0mm |
Tap 10 |
Rose |
4.2mm |
7.2mm |
1.2mm |
83.9520.202.4 |
| 5.0 x 1.6mm |
Tap 10 |
Black |
2.8mm |
4.9mm |
1.2mm |
83.5016.202.3 |
|
9.5 x 2.0mm |
Tap 10 |
Yellow |
4.0mm |
7.0mm |
1.2mm |
83.9520.202.8 |
| 5.0 x 1.6mm |
Tap 10 |
Rose |
3.0mm |
4.9mm |
1.2mm |
83.5016.202.4 |
|
9.5 x 2.0mm |
Tap 10 |
White |
4.1mm |
7.1mm |
1.2mm |
83.9520.202.9 |
| 5.0 x 1.6mm |
Tap 10 |
Yellow |
2.9mm |
4.9mm |
1.2mm |
83.5016.202.8 |
|
9.5 x 2.5mm |
Tap 10 |
Black |
4.0mm |
7.0mm |
1.2mm |
83.9525.201.3 |
| 5.0 x 1.6mm |
Tap 10 |
White |
2.9mm |
4.9mm |
1.2mm |
83.5016.202.9 |
|
9.5 x 2.5mm |
Tap 10 |
Black |
4.0mm |
7.0mm |
1.2mm |
83.9525.202.3 |
| 5.0 x 1.8mm |
Tap 10 |
Black |
2.9mm |
4.8mm |
1.2mm |
83.5018.202.3 |
|
9.5 x 2.5mm |
Tap 10 |
Rose Gold |
3.9mm |
6.9mm |
1.3mm |
83.9525.202.4 |
| 5.0 x 1.8mm |
Tap 10 |
Rose |
2.9mm |
4.8mm |
1.2mm |
83.5018.202.4 |
|
9.5 x 2.5mm |
Tap 10 |
Yellow |
4.0mm |
7.0mm |
1.3mm |
83.9525.202.8 |
| 5.0 x 1.8mm |
Tap 10 |
Yellow |
2.9mm |
4.8mm |
1.2mm |
83.5018.202.8 |
|
9.5 x 2.5mm |
Tap 10 |
White |
3.9mm |
6.9mm |
1.3mm |
83.9525.202.9 |
| 5.0 x 1.8mm |
Tap 10 |
White |
2.9mm |
4.8mm |
1.2mm |
83.5018.202.9 |
|
10.0 x 2.0mm |
Tap 10 |
Black |
4.6mm |
7.5mm |
1.2mm |
83.1020.202.3 |
| 5.0 x 2.0mm |
Tap 10 |
Yellow |
2.2mm |
3.8mm |
1.3mm |
83.5020.201.8 |
|
10.0 x 2.0mm |
Tap 10 |
Rose |
4.8mm |
7.7mm |
1.2mm |
83.1020.202.4 |
| 5.0 x 2.0mm |
Tap 10 |
White |
2.6mm |
4.8mm |
1.3mm |
83.5020.201.9 |
|
10.0 x 2.0mm |
tap 10 |
Yellow |
4.5mm |
7.4mm |
1.2mm |
83.1020.202.8 |
| 5.0 x 2.0mm |
Tap 10 |
Black |
3.0mm |
5.0mm |
1.2mm |
83.5020.202.3 |
|
10.0 x 2.0mm |
Tap 10 |
White |
4.6mm |
7.0mm |
1.2mm |
83.1020.202.9 |
| 5.0 x 2.0mm |
Tap 10 |
Rose |
2.9mm |
4.8mm |
1.2mm |
83.5020.202.4 |
|
10.0 x 2.5mm |
Tap 10 |
Black |
4.5mm |
7.5mm |
1.2mm |
83.1025.201.3 |
| 5.0 x 2.0mm |
Tap 10 |
Yellow |
2.8mm |
4.8mm |
1.2mm |
83.5020.202.8 |
|
10.0 x 2.5mm |
Tap 10 |
Black |
4.6mm |
7.5mm |
1.2mm |
83.1025.202.3 |
| 5.0 x 2.0mm |
Tap 10 |
White |
2.9mm |
4.8mm |
1.2mm |
83.5020.202.9 |
|
10.0 x 2.5mm |
Tap 10 |
Rose Gold |
4.5mm |
7.5mm |
1.3mm |
83.1025.202.4 |
| 5.0 x 2.0mm |
Tap 10 |
Titanium |
2.1mm |
4.2mm |
1.2mm |
83.5020.201.5 |
|
10.0 x 2.5mm |
Tap 10 |
Yellow |
4.5mm |
7.5mm |
1.3mm |
83.1025.202.8 |
| 5.0 x 2.5mm |
Tap 10 |
Yellow |
2.6mm |
4.8mm |
1.3mm |
83.5025.201.8 |
|
10.0 x 2.5mm |
Tap 10 |
White |
4.5mm |
7.5mm |
1.3mm |
83.1025.202.9 |
